1.Core Definition of UL891 Switchgear
Standard Basis: American UL 891 standard (full name: Standard for Switchboards).
Essence: A centralized power distribution device used in low-voltage power distribution systems (usually ≤600V), with main functions including power distribution, circuit protection, and monitoring.
Common Names: Often referred to as “UL891 distribution panel” or “UL891 switchboard” in the industry, but strictly speaking, it belongs to main distribution level equipment (distinguished from end distribution boxes).
2.Key Standard Requirements
Structural Safety:
The enclosure must meet UL 50 protection levels (such as dust and moisture resistance).
The busbar system must pass short-circuit current tests (usually required to withstand 65kA/3 seconds).
Electrical Performance:
Temperature rise limit: Under rated current, the busbar temperature rise ≤55℃ (based on an ambient temperature of 40℃).
Insulation performance: Pass 2500V AC withstand voltage test (no breakdown for 1 minute).
Marking and Documentation:
Clearly mark the rated current, voltage, short-circuit capacity, and warning signs.
Technical documents such as wiring diagrams and maintenance manuals must be provided.

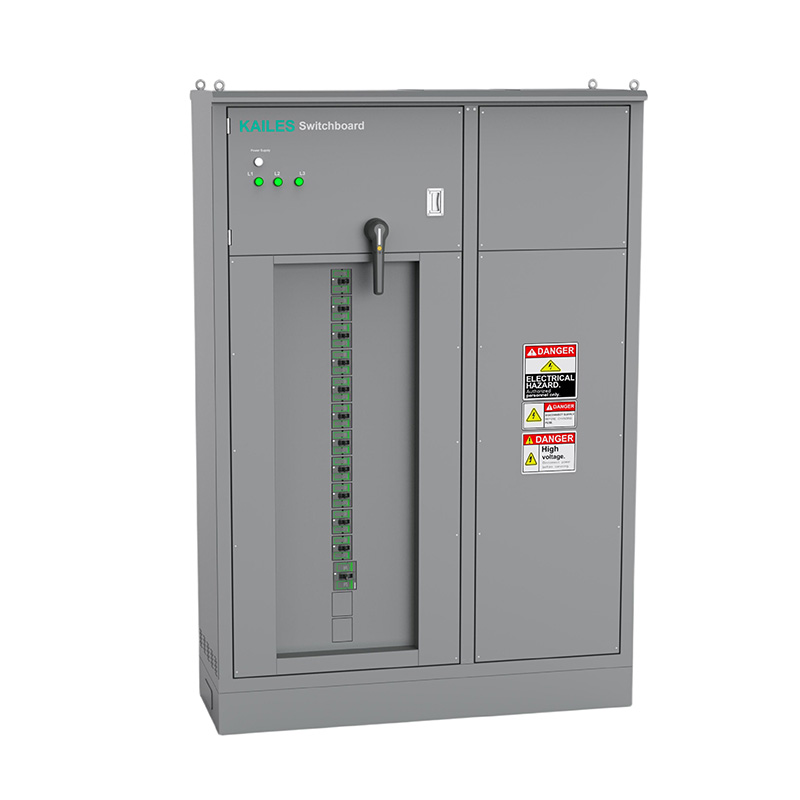

3.Typical Product Features

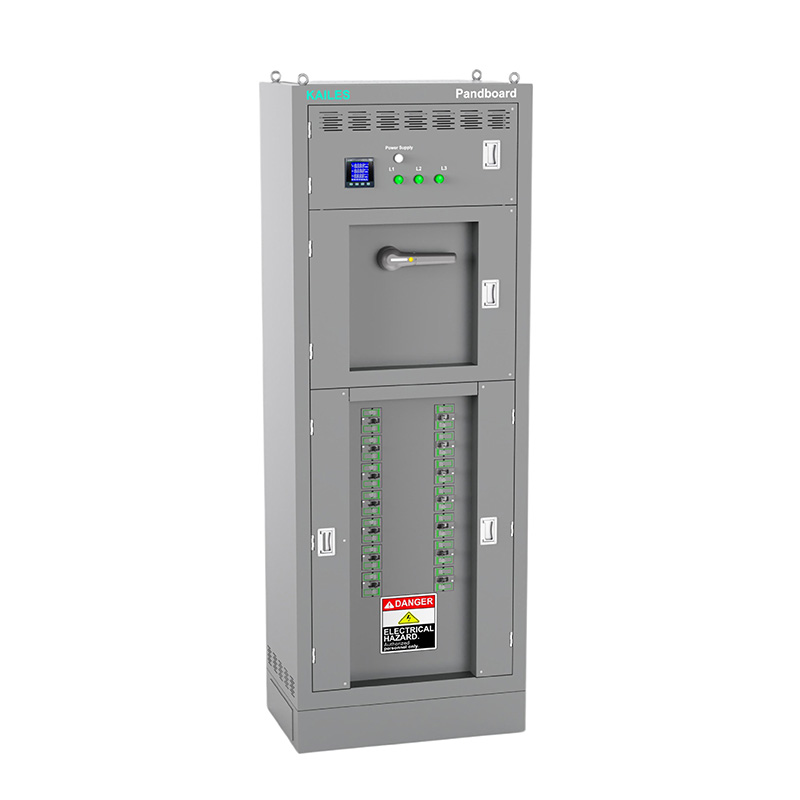

Structural Design:

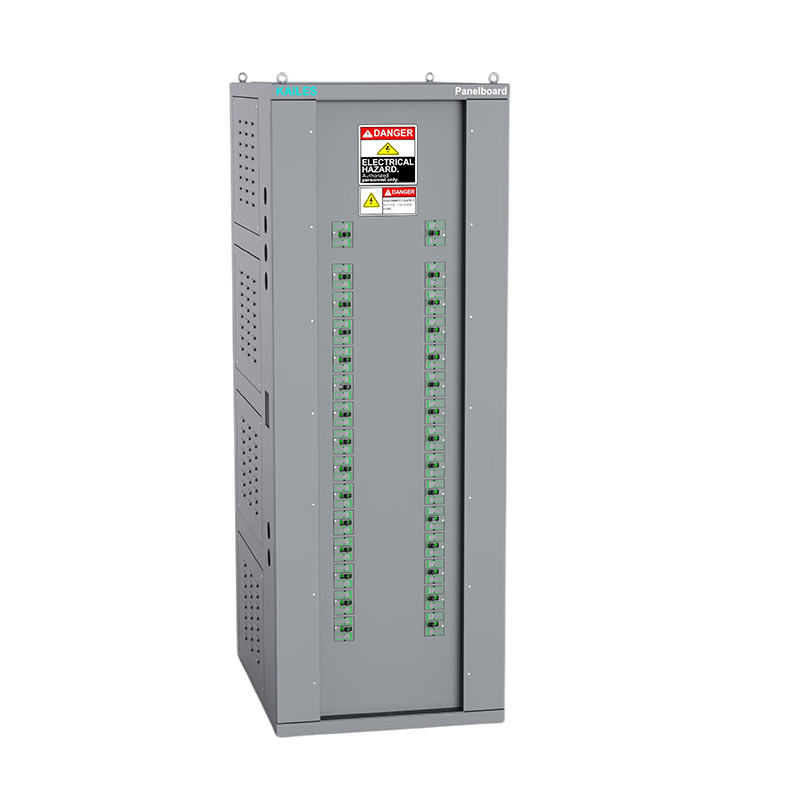

Frame-type layout: Open or closed structure, supporting modular expansion.
Busbar system: Copper or aluminum bars, with tin/silver plating on the surface to reduce contact resistance.
Circuit breaker installation: Usually equipped with air circuit breakers (ACB) or molded case circuit breakers (MCCB).

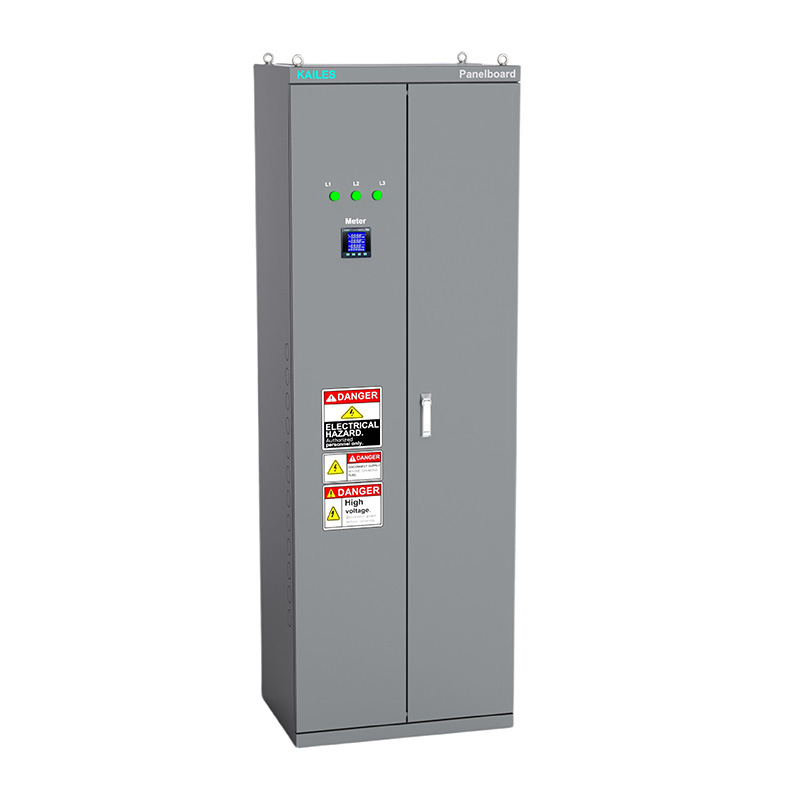

Functional Configuration:
Optional ammeters, voltmeters, and electric energy metering modules.
Supports ATS (Automatic Transfer Switch) integration to realize dual-power switching.
Application Scenarios:
Main distribution rooms of commercial buildings, incoming cabinets of data centers, power distribution centers of industrial plants.
4.Comparison between UL891 Switchgear and Other Standard Cabinet Types
| Comparison Item |
UL891 Switchgear |
UL67 Panel Box |
IEC61439-1 Switchgear |
| Standard System |
American UL Standard |
American UL Standard |
International IEC Standard |
| Voltage Level |
≤600V |
≤600V |
Up to 1000V |
| Short-Circuit Withstand |
≤65kA |
≤10kA |
Up to 100kA |
| Typical Application |
Main Distribution |
End Distribution |
Global (non-US markets) |
| Circuit Breaker Selection |
UL1066, UL489 |
UL489 |
IEC |
Certification Compliance:
Confirm that the product is affixed with the UL certification mark and verify the certification documents (such as UL certification number).
Customization Requirements:
UL891 switchgear can be customized in terms of busbar capacity (e.g., 1600A/2500A) and incoming/outgoing line directions (top/bottom).
Supporting Equipment:
Must be matched with UL-certified circuit breakers.
Clarification of Common Misunderstandings:
❌ “UL891 = low-voltage distribution panel”: UL891 actually covers main distribution level switchgear, while small-current distribution panels may belong to the scope of UL67.
❌ “Only used in the United States”: Through localized adaptation (such as supplementary CE certification), it can be exported to markets that recognize UL standards, such as the Middle East and Southeast Asia.
