KAILES Basic PDU

Standardized production / Modular structure / Safe and reliable

Monitdrde PDU
Monitdrde PDU

Monitored Type PDU (SI-PDU)

share

Facebook
Twitter
LinkedIn
Product Introduction

The Kailes Monitdrde Type PDU (SI-PDU) is specifically designed for small and medium-sized data centers. Through the integration of the MODBUS serial port, it can provide reliable power distribution and metering at the PDU level, and also supports environmental sensors for monitoring temperature and humidity. The SI-PDU helps facility managers make informed capacity planning decisions and use it to improve availability and energy efficiency.

Chat Now
Message
Mail
Chat Now
Message
Mail
Product Features
Real-Time Power Monitoring
The metering PDU offers real-time electrical metrics, including current, voltage, power, and energy, making it ideal for connecting or moving critical server equipment within cabinets.
Hot-Swappable or Built-in Meter
The metering ammeter is available in both hot-swappable and built-in options. The hot-swappable structure enables seamless upgrades from basic PDU to metering PDU and further to monitoring PDU.
Circuit Breaker Protection
Equipped with a built-in circuit breaker, the metering PDU automatically cuts off power when current exceeds safe thresholds, preventing short circuits, equipment damage, and ensuring electrical safety.
Reliable Power Distribution
Designed to comply with CCC/CE/UL/FCC/VDE standards, the metering PDU combines robust functionality, stable performance, high reliability, and cost-effectiveness.
Technical Parameters
Monitored Type PDU (SI-PDU)2
Technical Parameter Toble
Electrical Parameters
Input Voltage 200-240Vac / WYE
Input Current 32A MP
Hz 50/60Hz
Output Voltage 200-240Vac
Output Current 32A MP
Total carrying power 200Vac 6.4kw
Total carrying power 220Vac 7kw
Total carrying power 240Vac 7.68kw
Input Type
Power Input Mode Cable Line
Input Plug IEC60309 32A IP44
Input Cable Specification 3×10AWG
Function module type
Indicating function Power indicator light
Monitoring Breaker 2 × 20Amp
Measuring Meter Monitor electricity meter (RS485)
Output port type
Outlet Type IEC60320 C13×IEC60320 C19
Outlet Qty 20×C13  / 4×C19
Other
Installation Mode 0U
Incoming Direction Top Inlet
Shell Selection 1218mm
Install With Fixed Dimensions 1254mm
Product Size(L×W×H） 1278×55×52mm
Net Weight 6.5KG
Shell Material Composite galvanized sheet
Shell Color Black
Enforce Standards UL62368 / CE/ CCC
Monitored Type PDU (SI-PDU)2
Technical Parameter Toble
Electrical Parameters
Input Voltage 346-415Vac / WYE
Input Current 32A MP
Hz 50/60Hz
Output Voltage 200-240Vac
Output Current 32A MP
Total carrying power 200Vac 19kw
Total carrying power 220Vac 21kw
Total carrying power 240Vac 23kw
Input Type
Power Input Mode Cable Line
Input Plug IEC60309 3×32A IP44
Input Cable Specification 5×10AWG
Function module type
Indicating function Power indicator light
Monitoring Breaker 6 × 20Amp
Measuring Meter Monitor electricity meter (RS485)
Output port type
Outlet Type IEC60320 C13 10A
Outlet Qty 30×C13  / 6×C19
Other
Installation Mode 0U
Incoming Direction Top Inlet
Shell Selection 1838mm
Install With Fixed Dimensions 1874mm
Product Size(L×W×H） 1905×55×52mm
Net Weight 8.5KG
Shell Material Composite galvanized sheet
Shell Color Black
Enforce Standards UL62368 / CE/ CCC

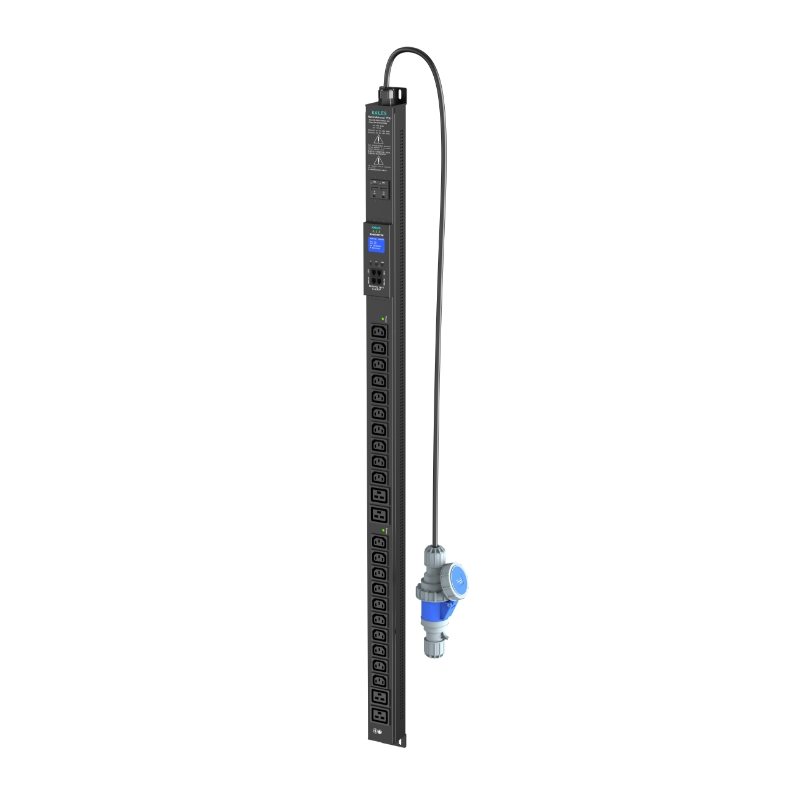

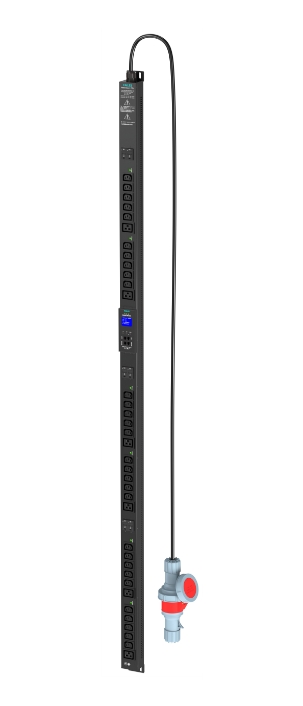

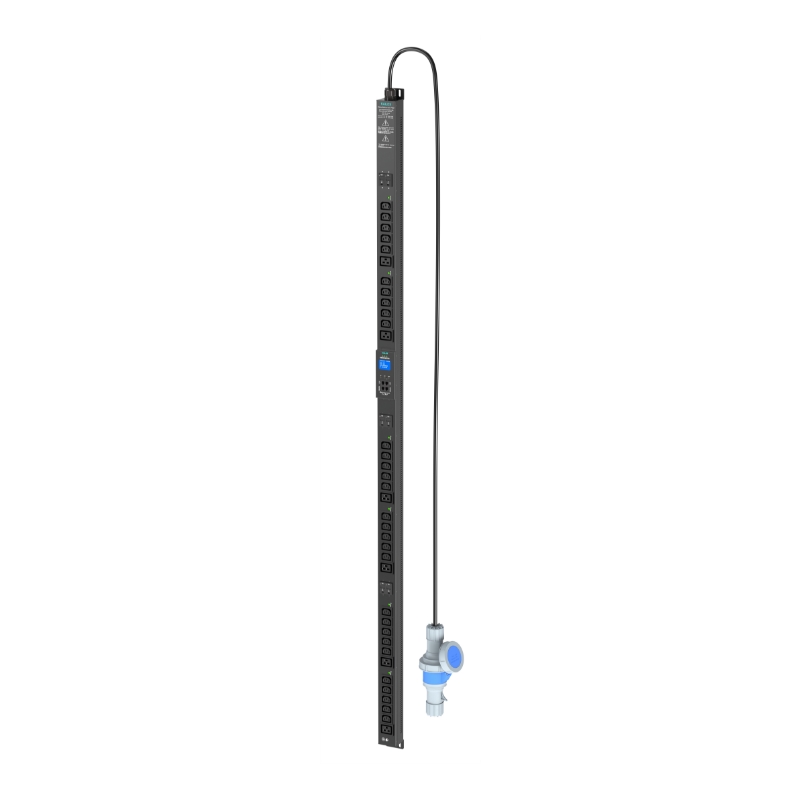

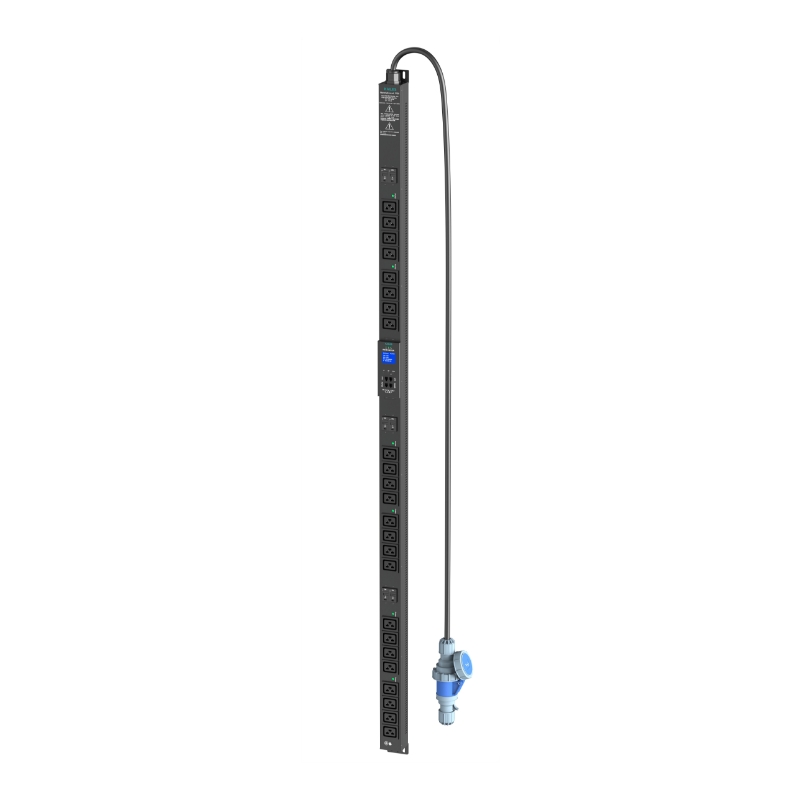

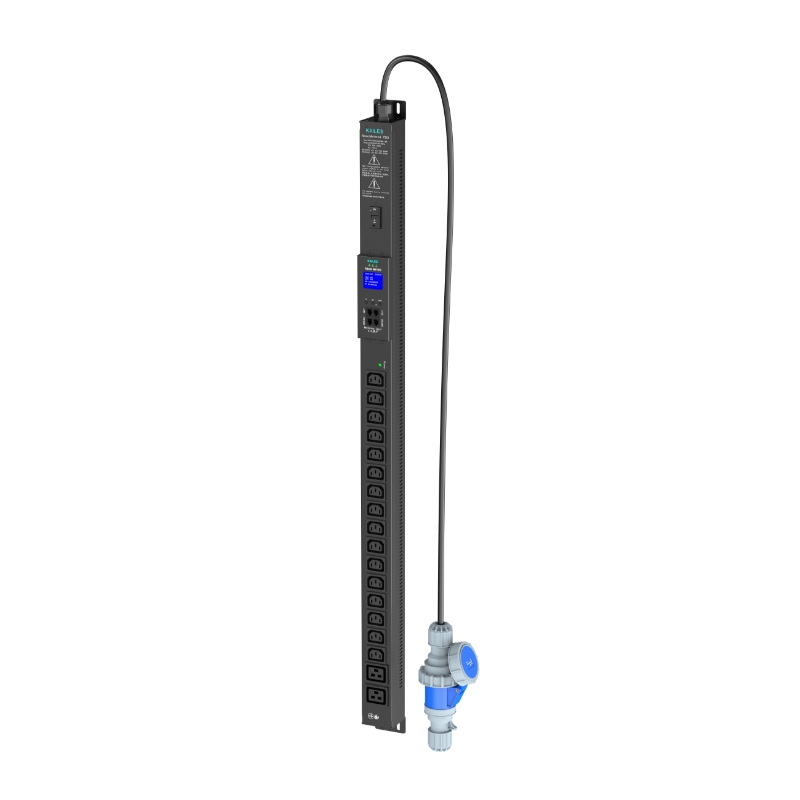

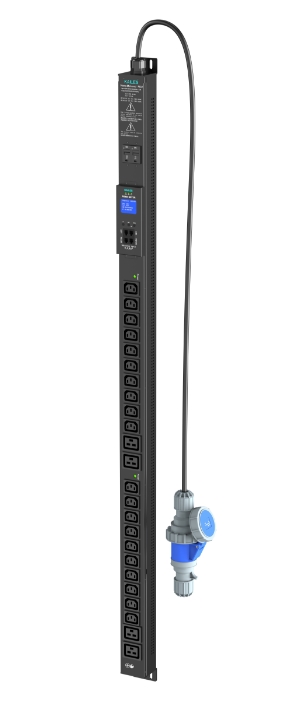

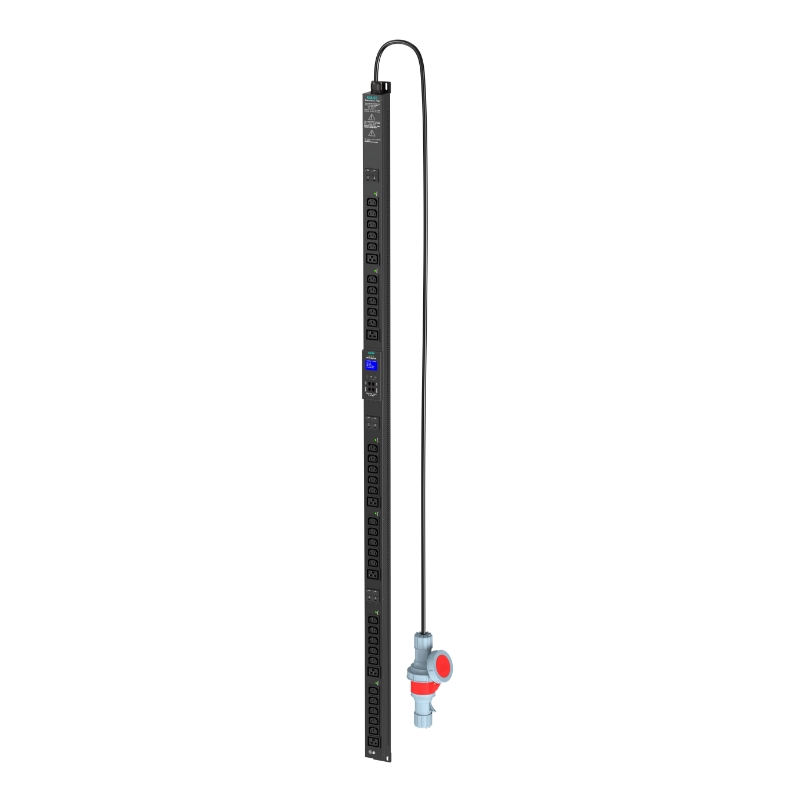

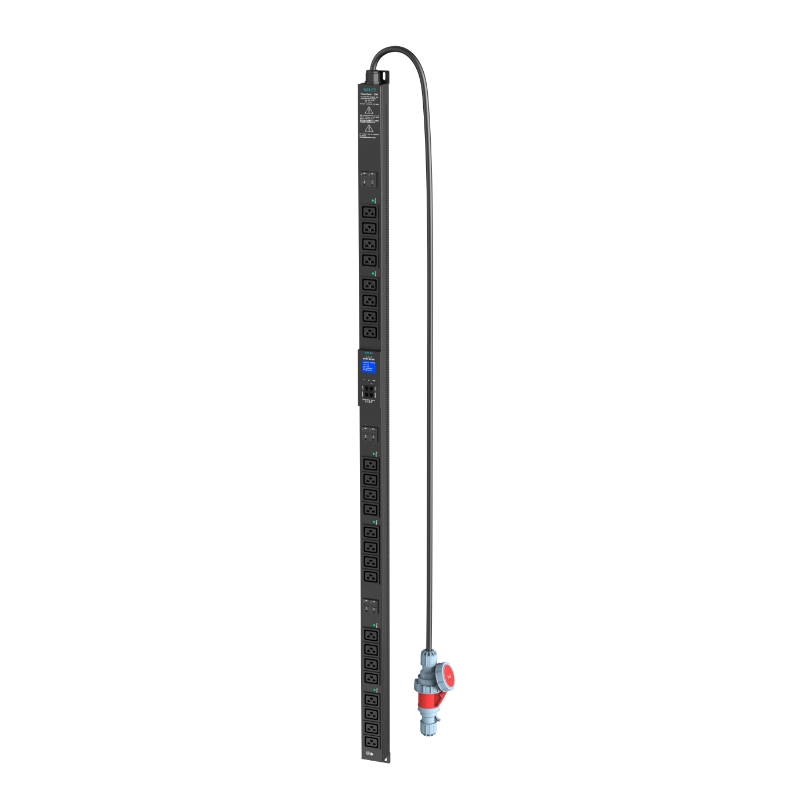

Picture Display
Monitored Type PDU (SI-PDU)2
Monitored Type PDU (SI-PDU)2
Monitored Type PDU (SI-PDU)2
Monitored Type PDU (SI-PDU)2
Monitored Type PDU (SI-PDU)2
Monitored Type PDU (SI-PDU)2
Typical specifications
Model Categary Rack Space Input Voltage Derated AMP Input Plug Outlet Types
KLS-K44S2B-B11E12G2-0A1 Monitdrde PDU 0U 220-240Vac WYE 16A IEC 60309 16A 12×C13+2×C19
KLS-K44S2B-B11E14G2-0A1 Monitdrde PDU 0U 220-240Vac WYE 16A IEC 60309 16A 14×C13+2×C19
KLS-K44S2B-B11E16G2-0A1 Monitdrde PDU 0U 220-240Vac WYE 16A IEC 60309 16A 16×C13+2×C19
KLS-K44S2B-B11E18G2-0A1 Monitdrde PDU 0U 220-240Vac WYE 16A IEC 60309 16A 18×C13+2×C19
KLS-K44S2E-B12E21G3-0A1 Monitdrde PDU 0U 220-240Vac WYE 32A IEC 60309 32A 21×C13+3×C19
KLS-K44S2E-B12E22G4-0A1 Monitdrde PDU 0U 220-240Vac WYE 32A IEC 60309 32A 22×C13+4×C19
KLS-K44S2E-B12E22G6-0A1 Monitdrde PDU 0U 220-240Vac WYE 32A IEC 60309 32A 22×C13+6×C19
KLS-K44S2E-B12E24G6-0A1 Monitdrde PDU 0U 220-240Vac WYE 32A IEC 60309 32A 24×C13+6×C19
KLS-K44S2E-B12E24G8-0A1 Monitdrde PDU 0U 220-240Vac WYE 32A IEC 60309 32A 24×C13+8×C19
KLS-K44S4E-B16E24G6-0A1 Monitdrde PDU 0U 346-415Vac WYE 32A IEC 60309 3×32A 24×C13+6×C19
KLS-K44S4E-B16E30G6-0A1 Monitdrde PDU 0U 346-415Vac WYE 32A IEC 60309 3×32A 30×C13+6×C19
KLS-K44S4E-B16E30G12-0A1 Monitdrde PDU 0U 346-415Vac WYE 32A IEC 60309 3×32A 30×C13+12×C19
KLS-K44S4E-B16E36G12-0A1 Monitdrde PDU 0U 346-415Vac WYE 32A IEC 60309 3×32A 36×C13+12×C19
