High-Power PDU Socket – A Power Solution Tailored for High-Energy Consumption Devices

share

Facebook
Twitter
LinkedIn
Product Introduction

The high-power PDU is a robust power distribution solution specifically designed for ultra-high power consumption device clusters. With a core current capacity ranging from 32A to over 100A, it supports power inputs of 20kW to 50kW or more per rack.By utilizing reinforced conductor materials and intelligent protection mechanisms, this PDU provides stable, secure, and scalable power supply for energy-intensive devices such as Bitcoin mining machines, AI training servers, GPU computing clusters, and more.

Chat Now
Message
Mail
Chat Now
Message
Mail
Product Features
Industrial-grade high current-carrying capacity
Constructed with thickened copper busbars (≥3mm²/A), 100% pure copper core cables, and a VO-rated flame-retardant housing, the PDU supports input currents of 63A, 80A, 100A, and up to 125A or higher — fully meeting the power demands of all types of Bitcoin mining rigs and high-performance AI computing equipment.
Strengthen heat dissipation and safety protection
Advanced thermal design and high-performance materials ensure precise temperature control at critical nodes. The system integrates arc fault detection and a high-speed, millisecond-level circuit breaker protection mechanism. This effectively addresses the risk of overheating and fire hazards at connection points during full-load operation of mining rigs or GPUs, significantly reducing downtime caused by power fluctuations. (1 hour of downtime in a Bitcoin mining farm = electricity loss of thousands of yuan).
Energy efficiency optimization and intelligent monitoring
Optional ±0.5% accuracy metering module for real-time monitoring of each channel’s power consumption; supports integration with DCIM systems via SNMP or Modbus protocols.Accurately calculate the electricity cost per mining machine or server, identify inefficient devices (such as older miners with insufficient computational power), and convert each kilowatt-hour of energy consumed by Bitcoin mining rigs into measurable computing power.A single interruption in AI training can result in the loss of millions of model parameters — making the continuous and stable power supply from a high-power PDU the "lifeline" for computing power assets.
Technical Parameters

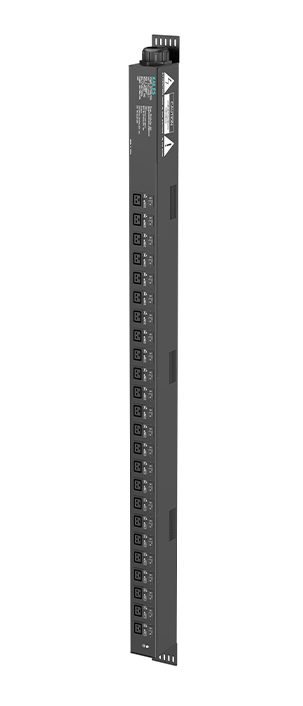

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices
 Technical Parameter Toble
 Electrical Parameters
Input Voltage 346-415Vac / WYE
Input Current 125A MP
Hz 50/60Hz
Output Voltage 200-240Vac
Output Current 125A MP
Total carrying power 200Vac 75kw
Total carrying power 220Vac 82.5kw
Total carrying power 240Vac 90kw
Input Type
Power Input Mode Junction box
Input Plug /
Input Cable Specification 4×0AWG + 1×1AWG
Function module type
Indicating function Power indicator light
Monitoring Breaker 24 × 20Amp
Measuring Meter /
Output port type
Outlet Type IEC60320 C19
Outlet Qty 24×C19
Other
Installation Mode 0U
Incoming Direction Top Inlet
Shell Selection 1807mm
Install With Fixed Dimensions 1889mm
Product Size(L×W×H） 1933×130×90mm
Net Weight 13KG
Shell Material Composite galvanized sheet
Shell Color Black
Enforce Standards UL62368 / CE/ CCC

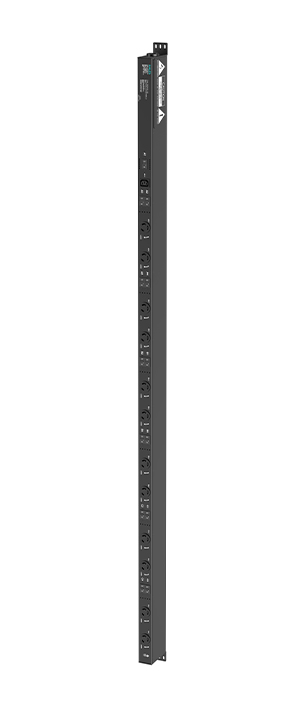

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices2
 Technical Parameter Toble
Electrical Parameters
Input Voltage 346-415Vac / WYE
Input Current 96A MP
Hz 50/60Hz
Output Voltage 200-240Vac
Output Current 96A MP
Total carrying power 200Vac 57.6kw
Total carrying power 220Vac 63kw
Total carrying power 240Vac 69kw
Input Type
Power Input Mode Junction box
Input Plug /
Input Cable Specification 4×2AWG+1×1×4AWG
Function module type
Indicating function Power indicator light
Monitoring Breaker 12 × 30Amp
Measuring Meter /
Output port type
Outlet Type NEMA L6-30R × IEC60320 C13
Outlet Qty 12×L6-30R / 1×C13
Other
Installation Mode 0U
Incoming Direction Top Inlet
Shell Selection 2100mm
Install With Fixed Dimensions 2155mm
Product Size(L×W×H） 2180×122×50mm
Net Weight 11KG
Shell Material Composite galvanized sheet
Shell Color Black
Enforce Standards UL62368 / CE/ CCC
Picture Display

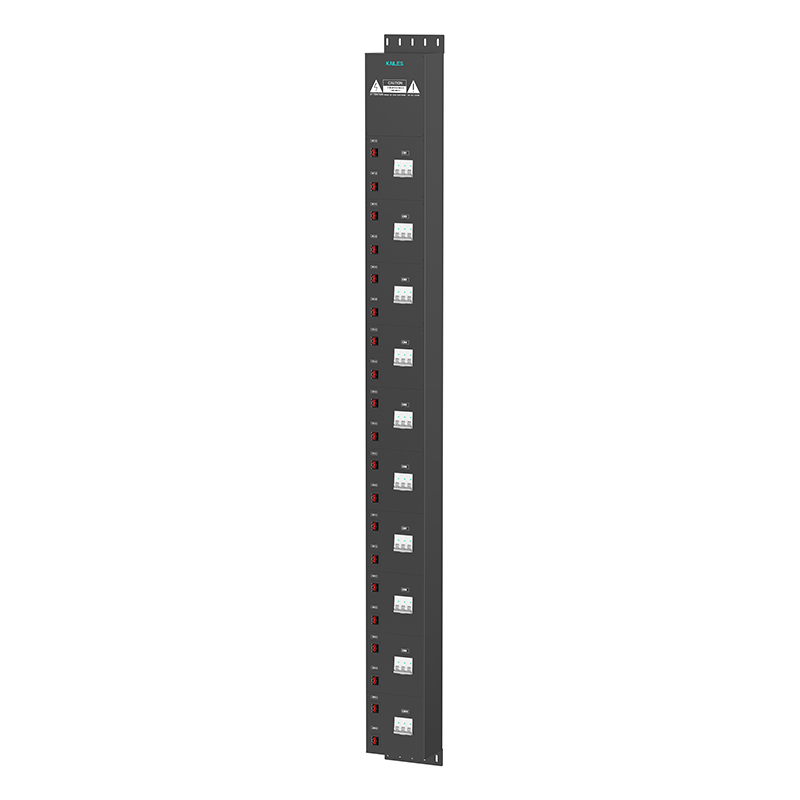

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices5
High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices4
High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices3

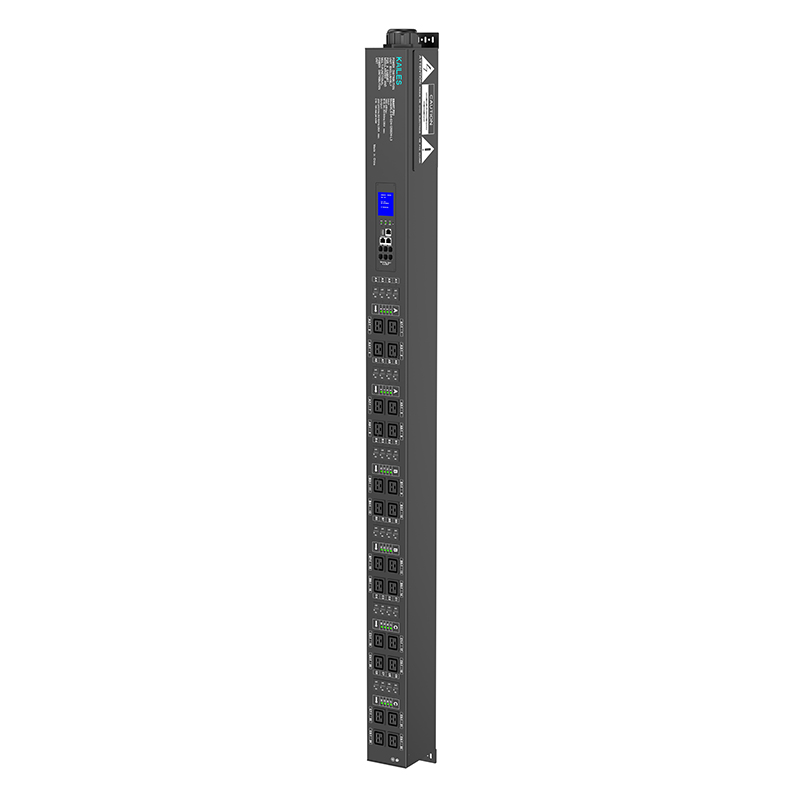

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices14

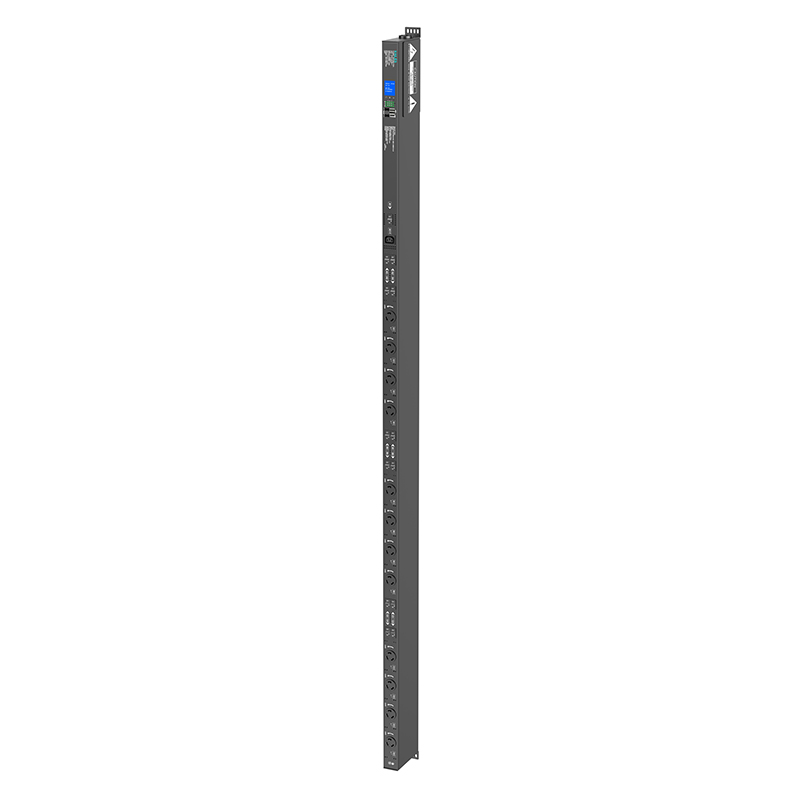

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices13

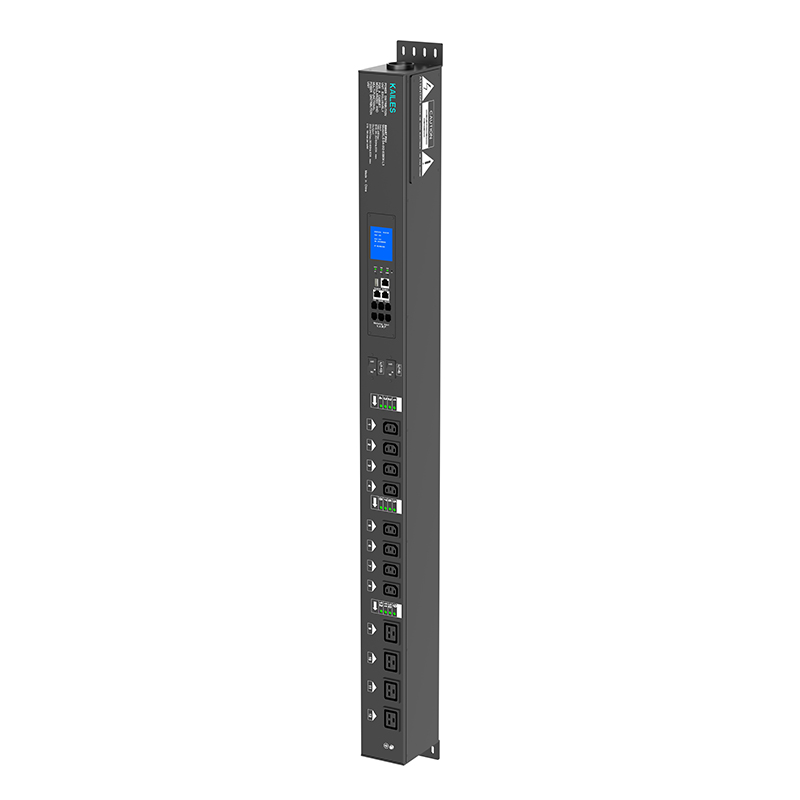

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices12

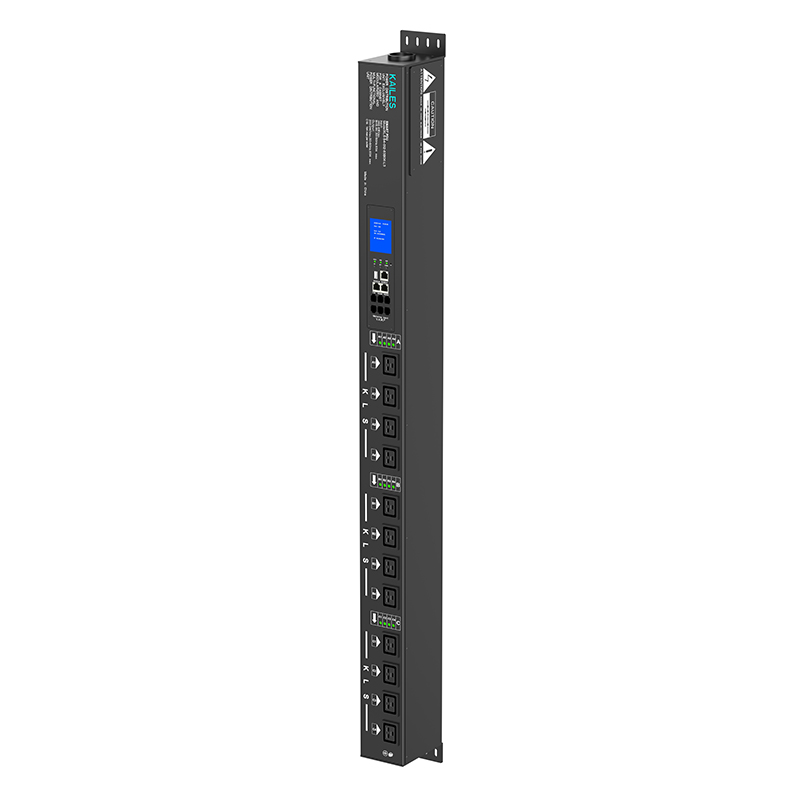

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices11

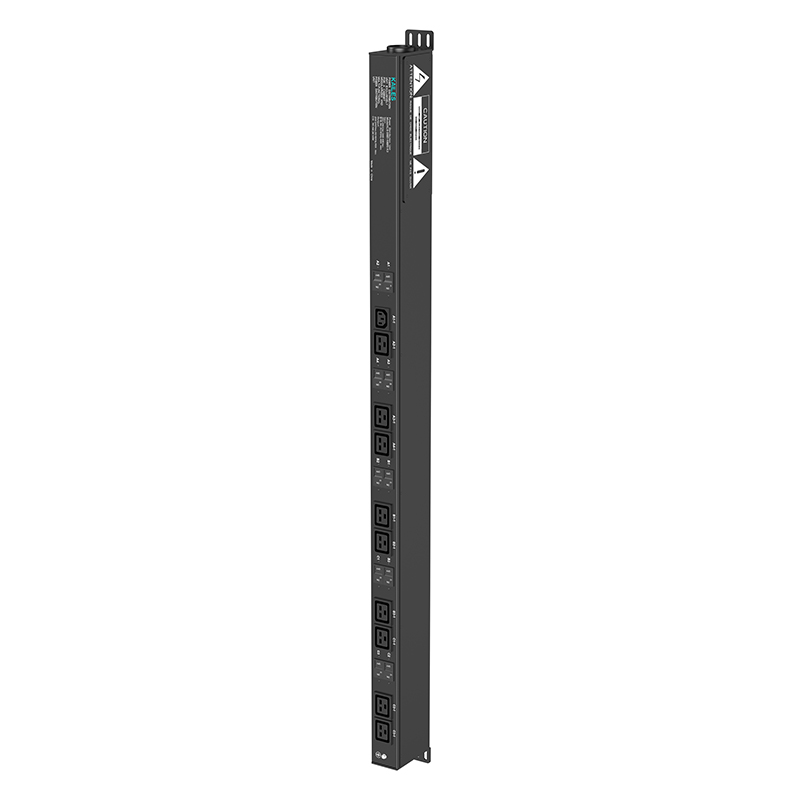

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices10

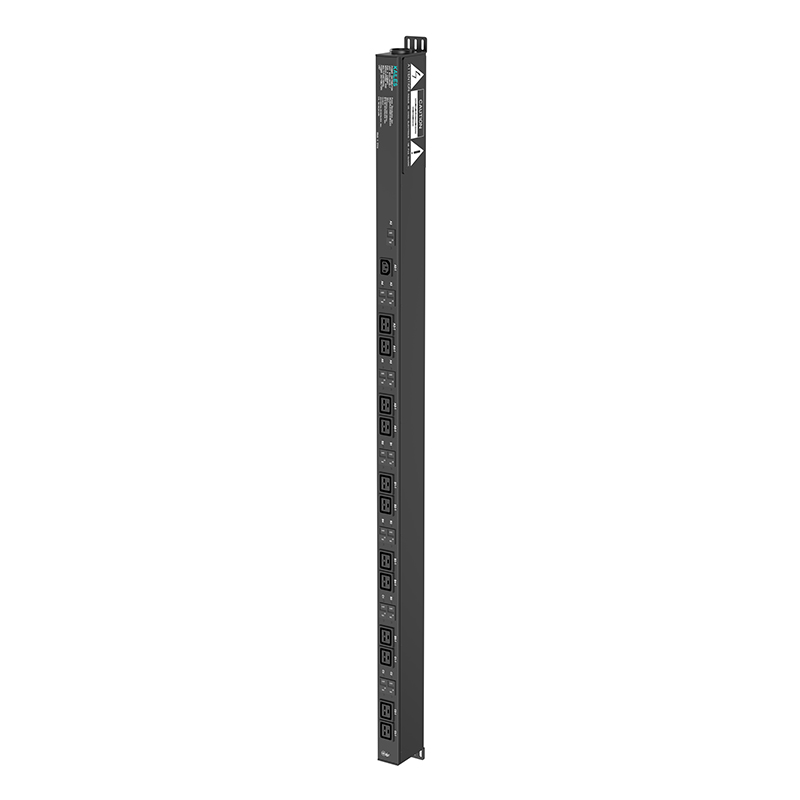

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices9

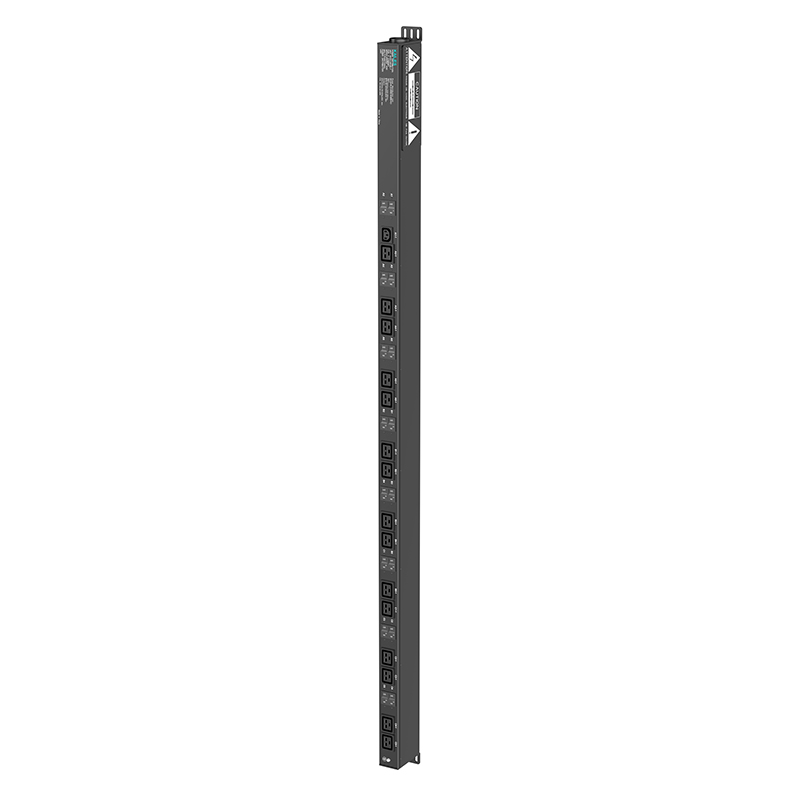

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices8

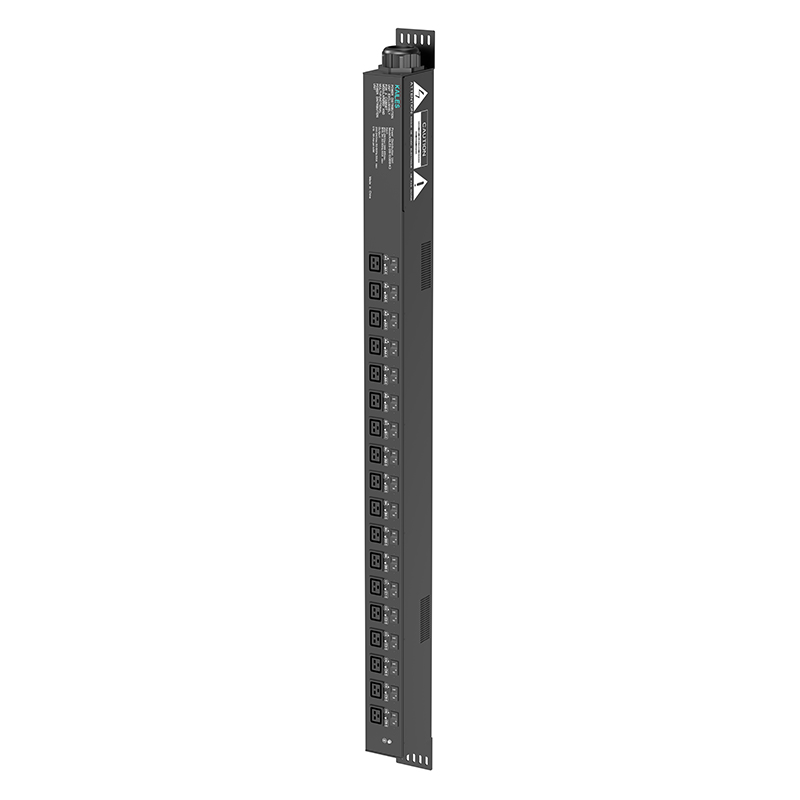

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices7

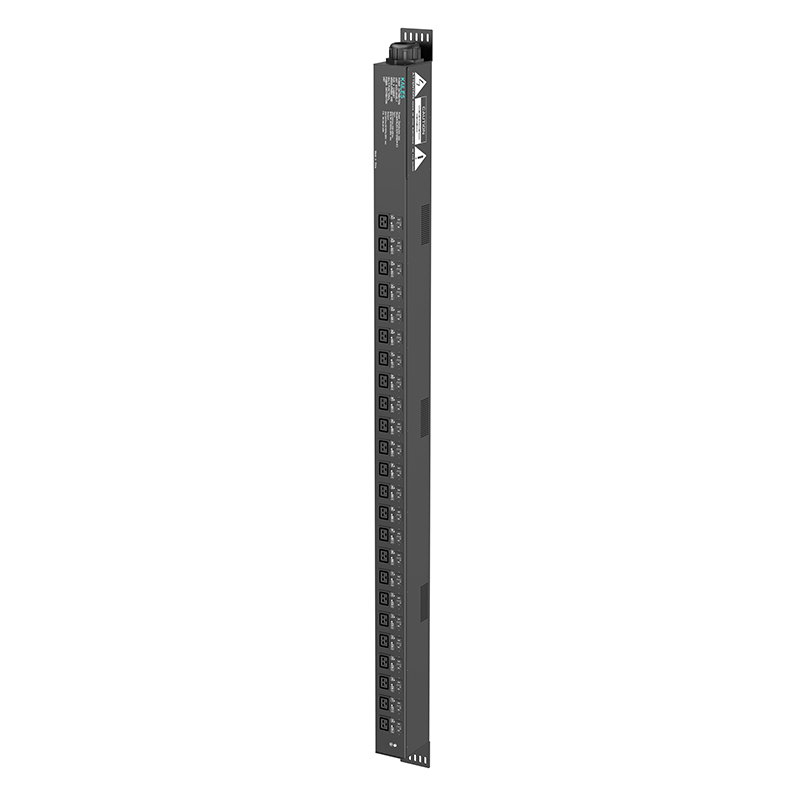

High-Power PDU Socket - A Power Solution Tailored for High-Energy Consumption Devices6
Typical specifications
Model Categary Rack Space Input Voltage  Derated AMP  Input Plug Outlet Types
KLS-G9E1-48B10-K3 High Power PDU 0U 346-415Vac WYE 48A IEC 60309 16A 1×C13+9×C19
KLS-G12E1-63B13-K3 High Power PDU 0U 346-415Vac WYE 63A IEC 60309 16A 1×C13+12×C19
KLS-G15E1-80B16-K3 High Power PDU 0U 346-415Vac WYE 80A IEC 60309 16A 1×C13+15×C19
KLS-G18-100B18-L3 High Power PDU 0U 346-415Vac WYE 100A IEC 60309 16A 1×C13+18×C19
KLS-G24-125B24-L3 High Power PDU 0U 346-415Vac WYE 125A IEC 60309 32A 1×C13+24×C19
KLS-N9E1-72B10-K3 High Power PDU 0U 346-415Vac WYE 72A IEC 60309 32A 1×C13+9×NEMA L6-30R
KLS-N12E1-96B13-K3 High Power PDU 0U 346-415Vac WYE 96A IEC 60309 32A 1×C13+12×NEMA L6-30R
