Basic PDU Socket – An Efficient and Stable Power Distribution Solution

Product Introduction

Kailes Basic PDU is a standardized power management device specially designed for server rooms, data centers, computing power centers, office equipment and industrial applications. With a focus on simplicity and reliability, it meets the demand for centralized power supply, safety protection and space optimization of multiple devices, making it an ideal choice for small server racks, network cabinets or equipment-intensive areas.

Kailes Basic PDU provides safe and reliable power distribution for all connected devices in server racks or network cabinets.It offers various power input and output options, ranging from AC to DC, single-phase to three-phase, and from 10A to 125A.All PDUs feature a modular structure and customized production, with horizontal and vertical mounting options to meet your unique requirements.

Chat Now

Product Features

Modular Structure and Customized Production

Kailes Basic PDU adopts a modular structure, with optional standard socket types of various countries, as well as various optional control and protection function modules. It also offers multiple input methods and installation ways, allowing users to freely combine and flexibly configure according to actual needs. Kailes Basic PDU supports a wide range of power inputs, including 110-125V/200-240V/346-415V/208V, and is compatible with both AC and DC power. Additionally, multiple housing sizes and socket colors are available to meet diverse customization needs.

Multi-Port Flexible Power Supply

Kailes Basic PDU provides 10 to 48 bit standard output sockets (socket types are optional), supporting simultaneous access of multiple devices, solving the problem of messy wiring of traditional power strips and improving the space utilization rate of cabinets.

Circuit Breaker Protection

Kailes Basic PDU is equipped with a built-in circuit breaker which can automatically cut off the power when the current exceeds the safety threshold, effectively avoiding risks such as short circuits and equipment burnout to ensure electrical safety.

Industrial-Grade Durability

The housing of Kailes Basic PDU is made of T5 aluminum and composite galvanized sheet, offering high-temperature resistance and impact resistance. Internal copper conductors ensure superior conductivity, and all components inside the PDU are UL and CE certified for long-term stable and reliable operation.

High value for money

The cost is the lowest and it is suitable for scenarios with tight budgets.

No fault points

Without electronic components, the theoretical lifespan can exceed 10 years.

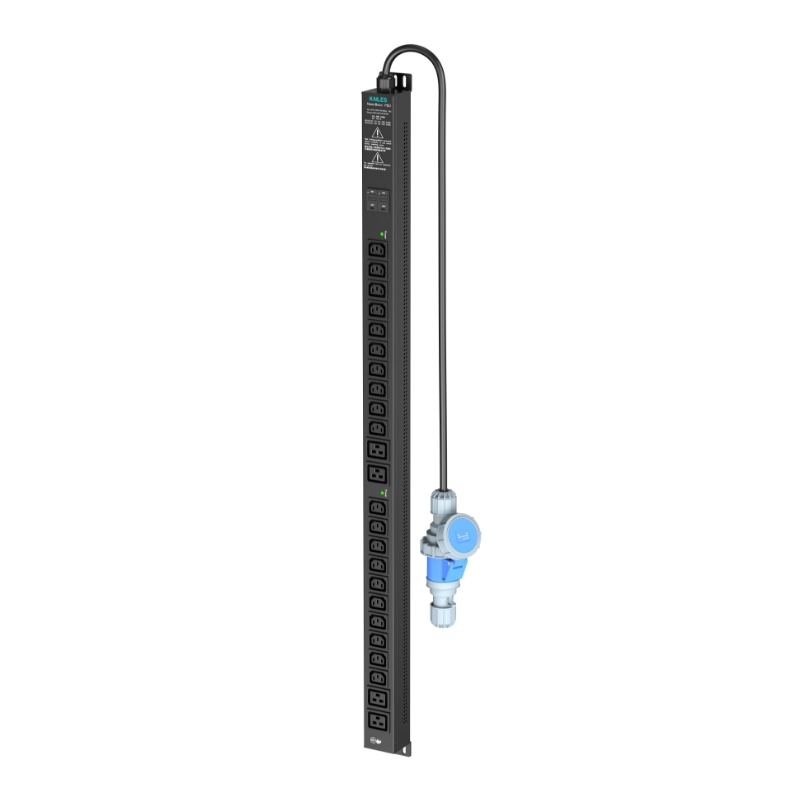

Technical Parameters

Technical Parameter Toble
Electrical Parameters
Input Voltage	200-240Vac / WYE
Input Current	32A MP
Hz	50/60Hz
Output Voltage	200-240Vac
Output Current	32A MP
Total carrying power 200Vac	6.4kw
Total carrying power 220Vac	7kw
Total carrying power 240Vac	7.68kw
Input Type
Power Input Mode	Cable Line
Input Plug	IEC60309 32A IP44
Input Cable Specification	3×10AWG
Function module type
Indicating function	Power indicator light
Monitoring	Breaker 2 × 20Amp
Measuring Meter	/
Output port type
Outlet Type	IEC60320 C13 10A
Outlet Qty	20×C13 / 4×C19
Other
Installation Mode	0U
Incoming Direction	Top Inlet
Shell Selection	1038mm
Install With Fixed Dimensions	1074mm
Product Size(L×W×H）	1098×55×52mm
Net Weight	5.5KG
Shell Material	Composite galvanized sheet
Shell Color	Black
Enforce Standards	UL62368 / CE/ CCC

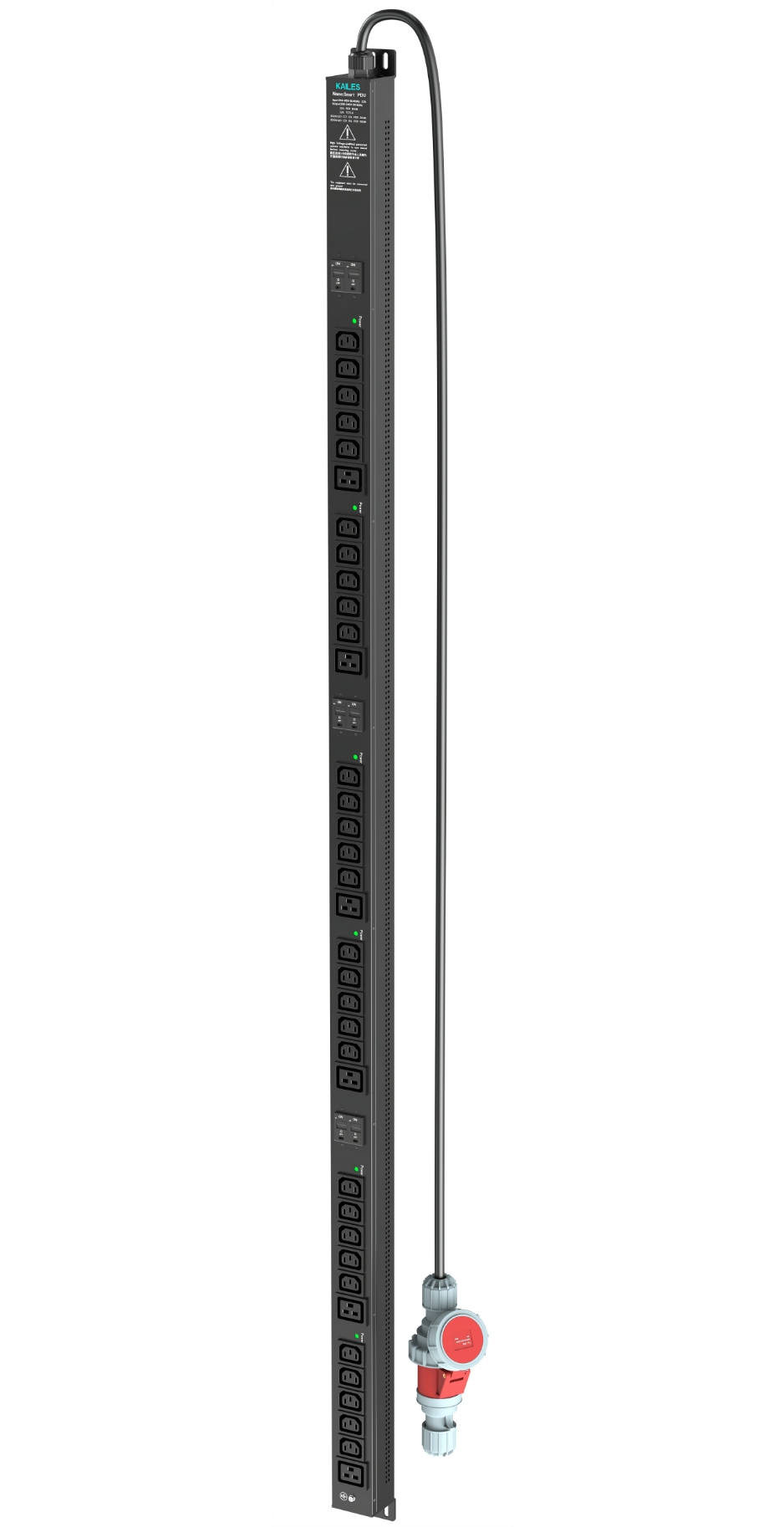

Technical Parameter Toble
Electrical Parameters
Input Voltage	346-415Vac / WYE
Input Current	32A MP
Hz	50/60Hz
Output Voltage	200-240Vac
Output Current	32A MP
Total carrying power 200Vac	19kw
Total carrying power 220Vac	21kw
Total carrying power 240Vac	23kw
Input Type
Power Input Mode	Cable Line
Input Plug	IEC60309 3×32A IP44
Input Cable Specification	5×10AWG
Function module type
Indicating function	Power indicator light
Monitoring	Breaker 6 × 20Amp
Measuring Meter	/
Output port type
Outlet Type	IEC60320C13 / IC60320C19
Outlet Qty	30×C13 / 6×C19
Other
Installation Mode	0U
Incoming Direction	Top Inlet
Shell Selection	1658mm
Install With Fixed Dimensions	1694mm
Product Size(L×W×H）	1718×55×52mm
Net Weight	8.5KG
Shell Material	Composite galvanized sheet
Shell Color	Black
Enforce Standards	UL62368 / CE/ CCC

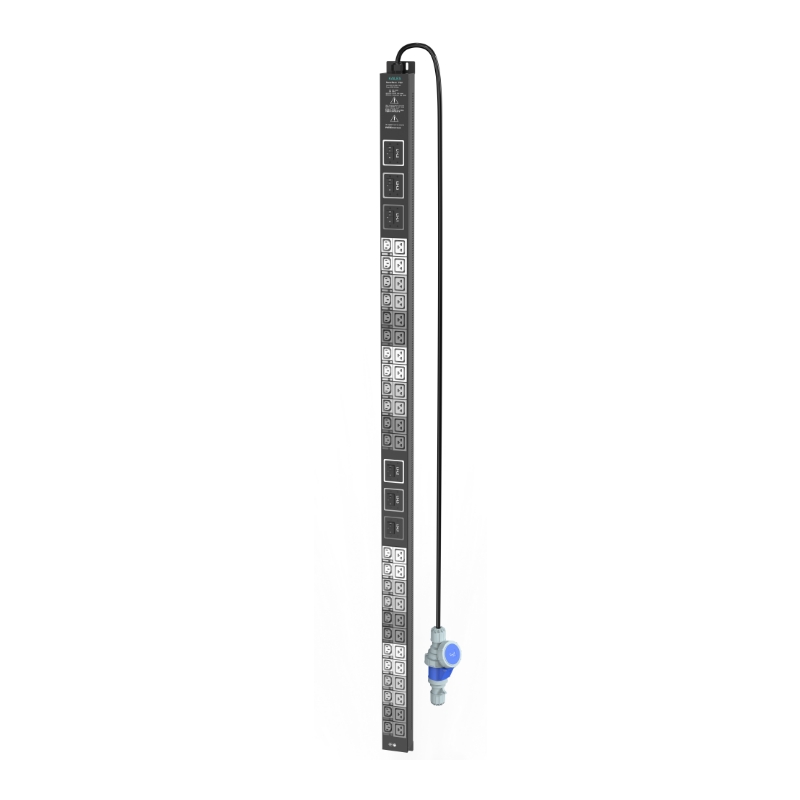

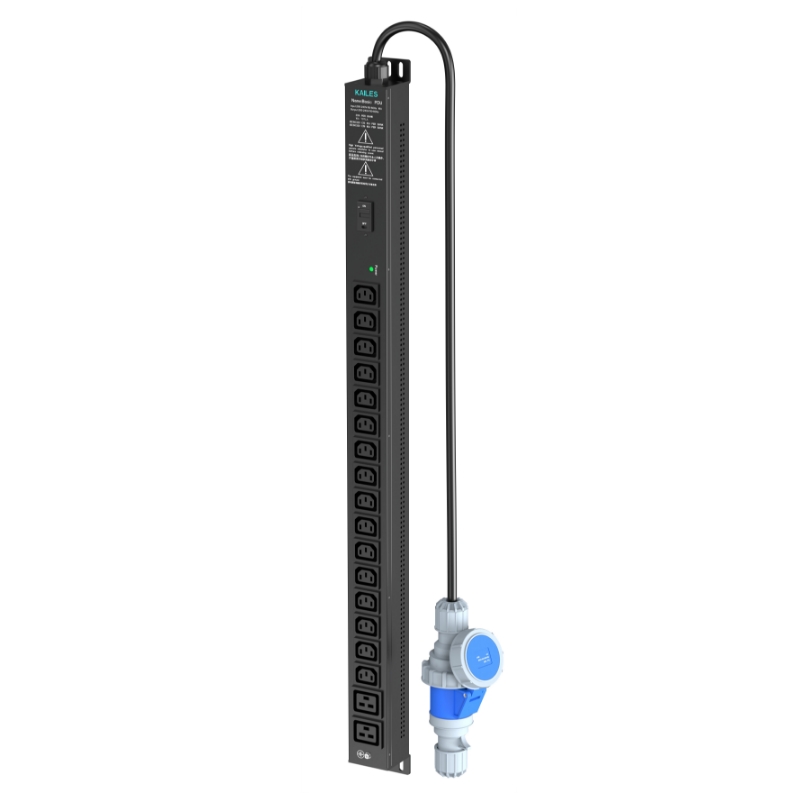

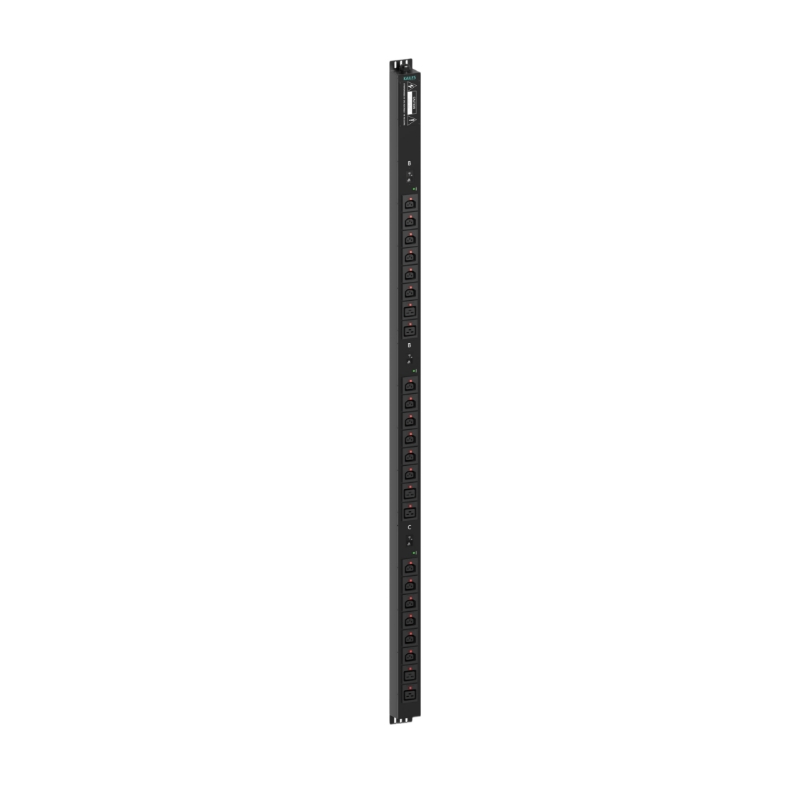

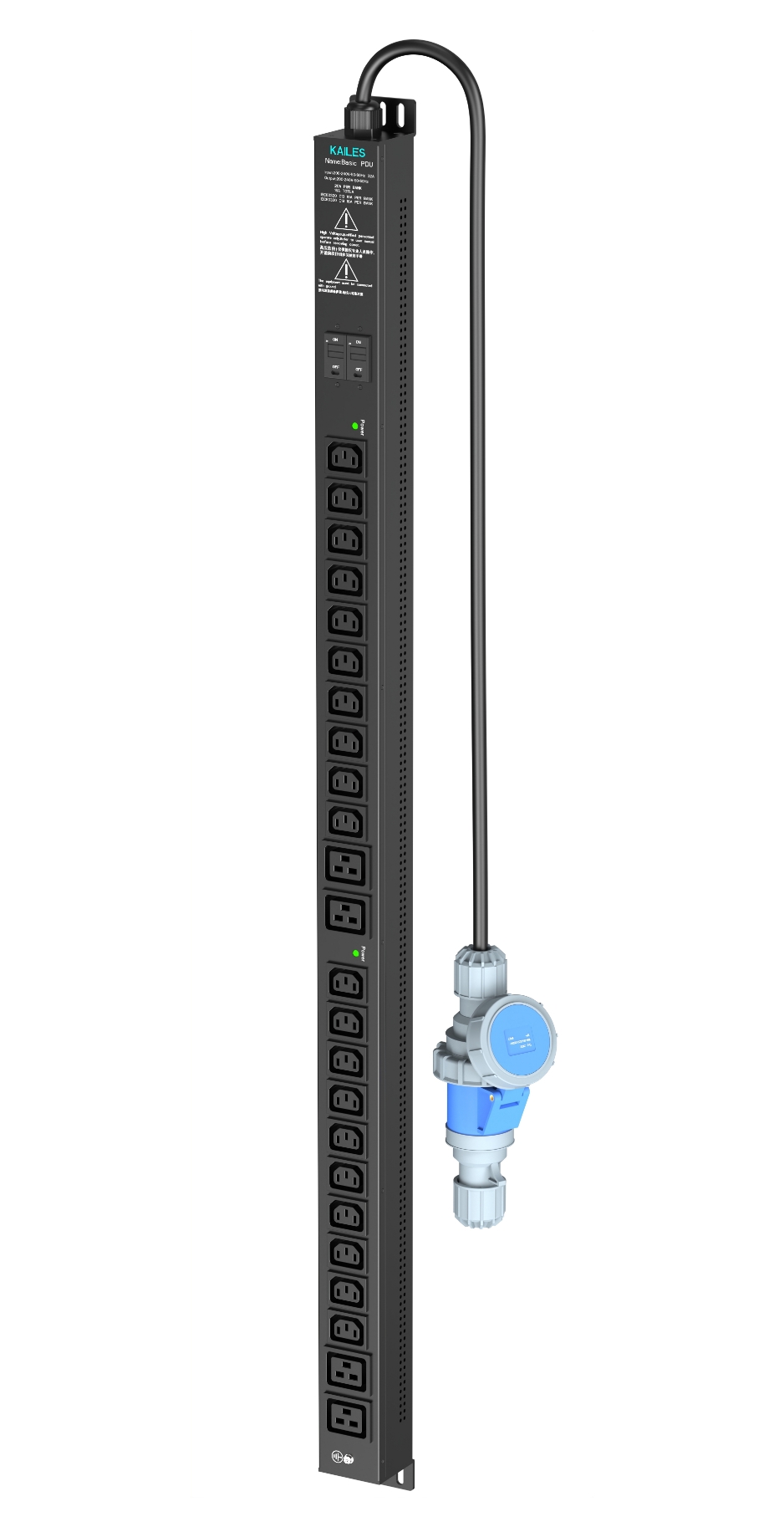

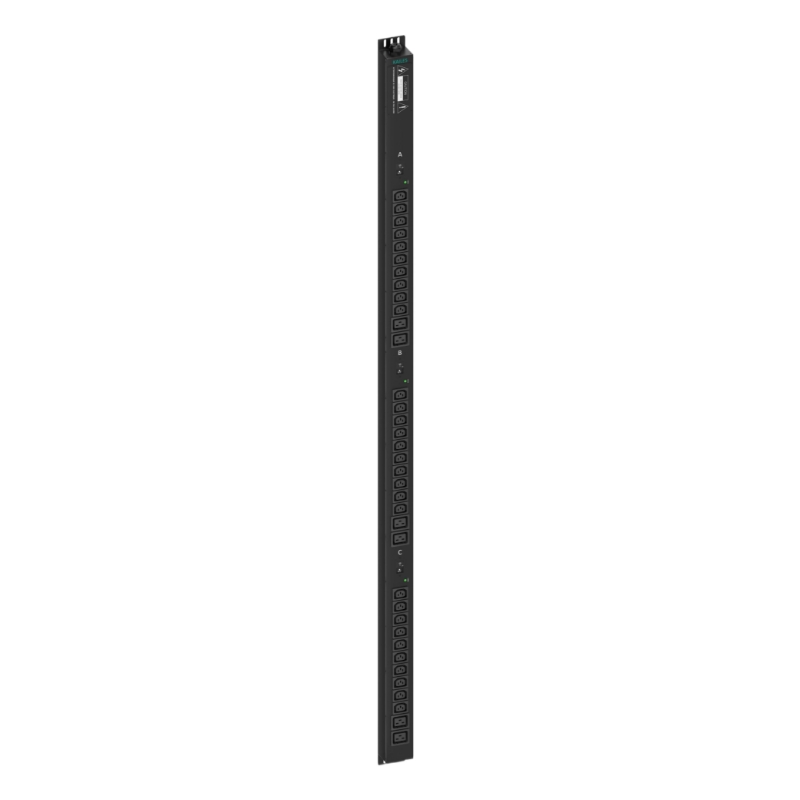

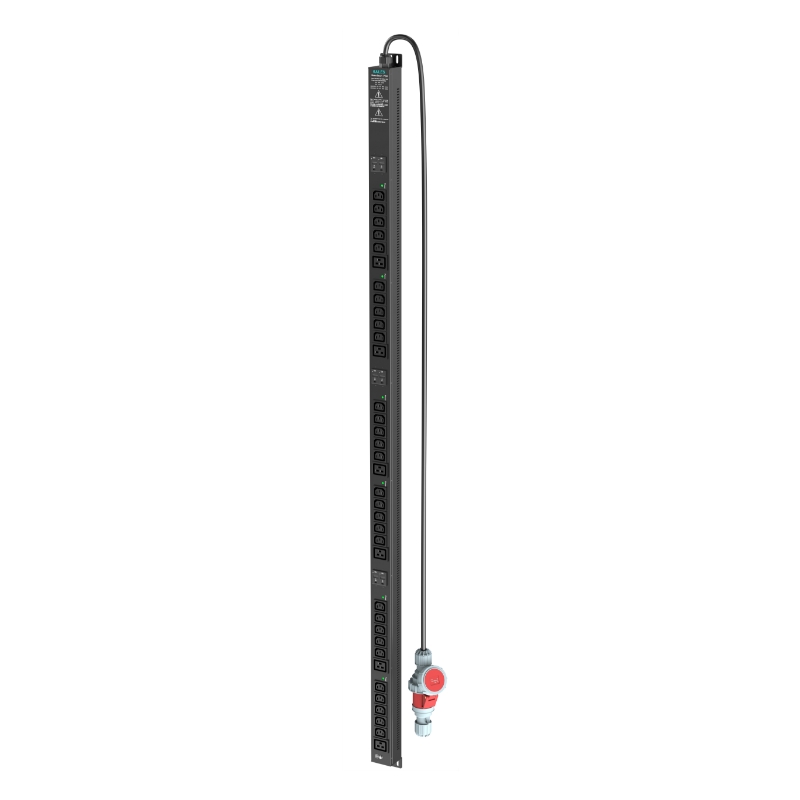

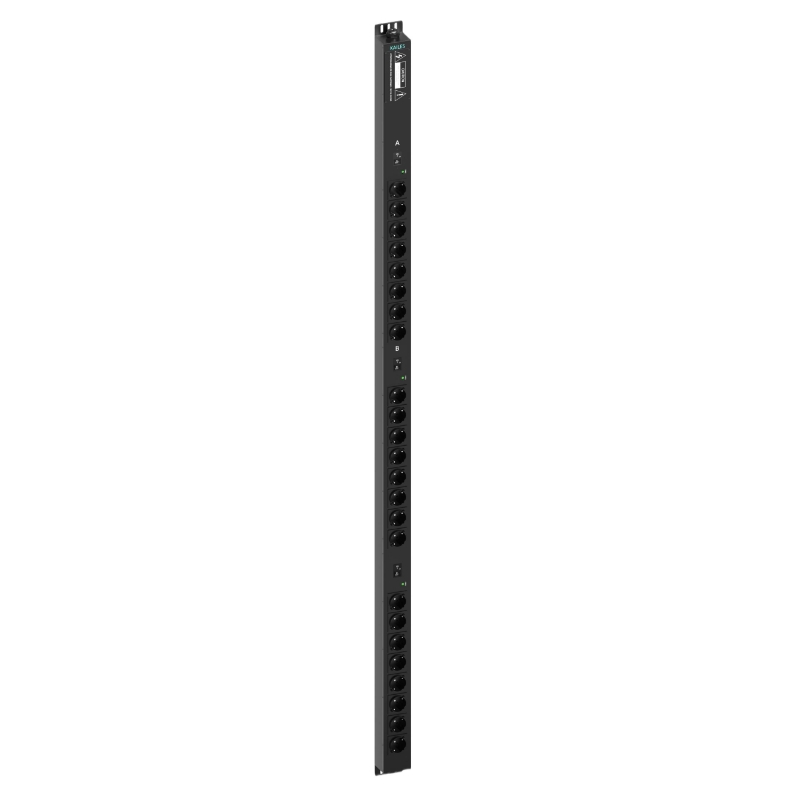

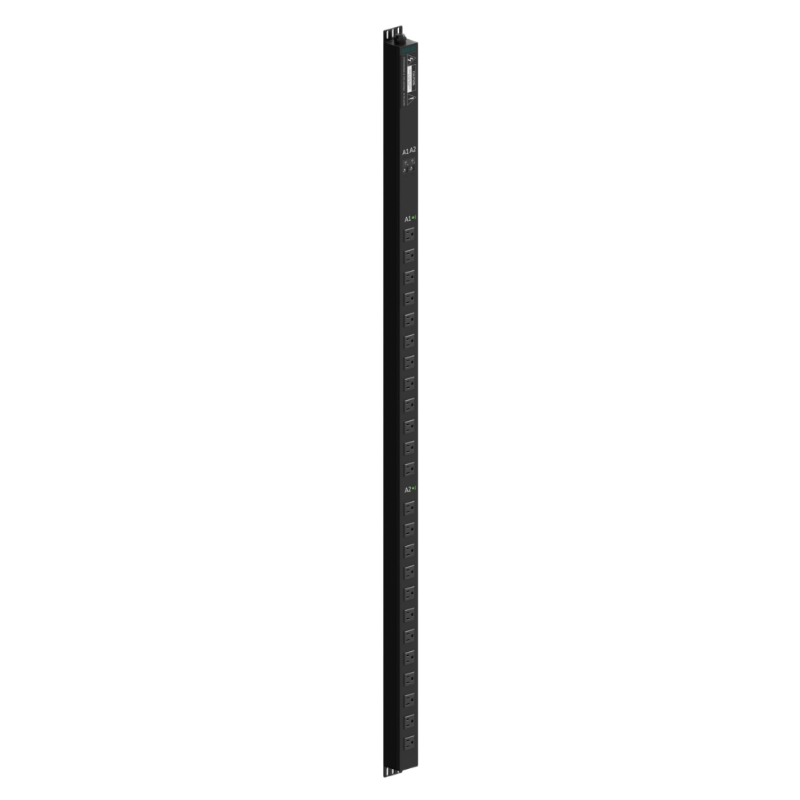

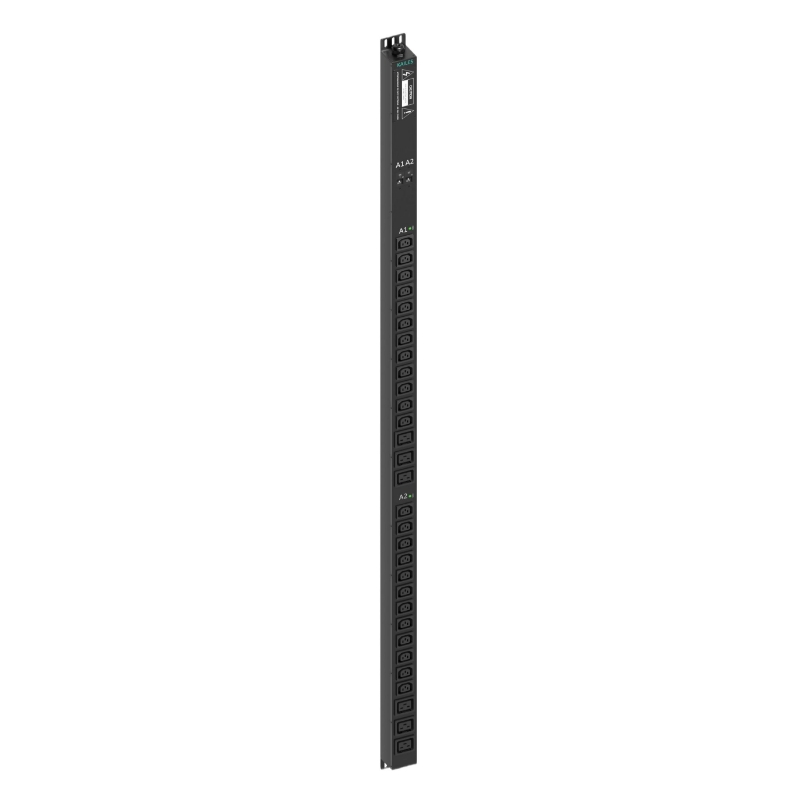

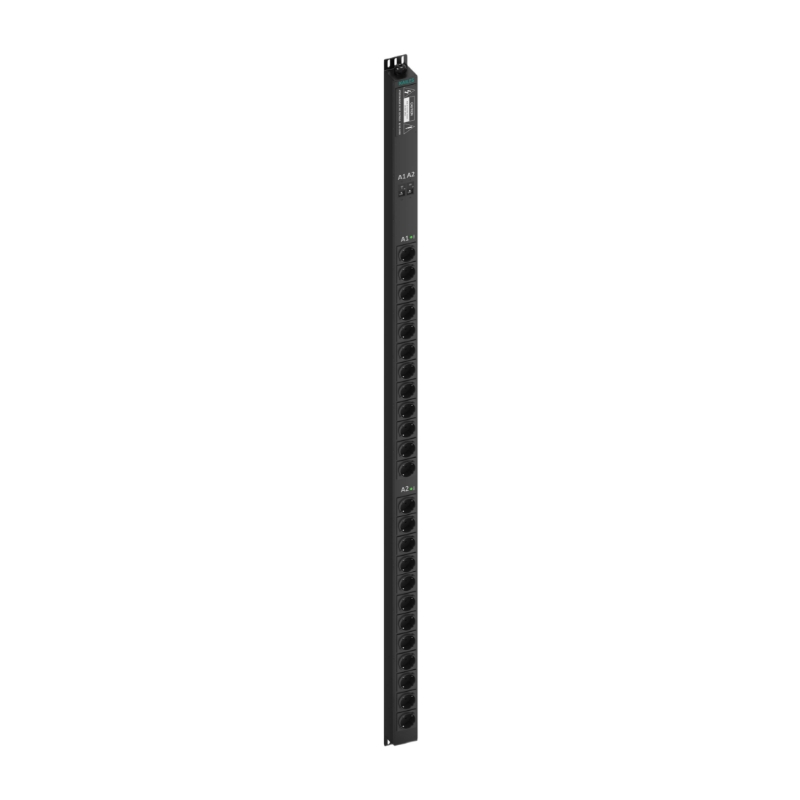

Picture Display

Typical specifications

Model	Categary	Rack Space	Input Voltage	Derated AMP	Input Plug	Outlet Types
KLS-K222B-B11E12G2-0A1	Basic PDU	0U	220-240Vac WYE	16A	IEC 60309 16A	12×C13+2×C19
KLS-K222B-B11E14G2-0A1	Basic PDU	0U	220-240Vac WYE	16A	IEC 60309 16A	14×C13+2×C19
KLS-K222B-B11E16G2-0A1	Basic PDU	0U	220-240Vac WYE	16A	IEC 60309 16A	16×C13+2×C19
KLS-K222B-B11E18G2-0A1	Basic PDU	0U	220-240Vac WYE	16A	IEC 60309 16A	18×C13+2×C19
KLS-K222E-B12E21G3-0A1	Basic PDU	0U	220-240Vac WYE	32A	IEC 60309 32A	21×C13+3×C19
KLS-K222E-B12E22G4-0A1	Basic PDU	0U	220-240Vac WYE	32A	IEC 60309 32A	22×C13+4×C19
KLS-K222E-B12E22G6-0A1	Basic PDU	0U	220-240Vac WYE	32A	IEC 60309 32A	22×C13+6×C19
KLS-K222E-B12E24G6-0A1	Basic PDU	0U	220-240Vac WYE	32A	IEC 60309 32A	24×C13+6×C19
KLS-K222E-B12E24G8-0A1	Basic PDU	0U	220-240Vac WYE	32A	IEC 60309 32A	24×C13+8×C19
KLS-K224E-B16E24G6-0A1	Basic PDU	0U	346-415Vac WYE	32A	IEC 60309 3×32A	24×C13+6×C19
KLS-K224E-B16E30G6-0A1	Basic PDU	0U	346-415Vac WYE	32A	IEC 60309 3×32A	30×C13+6×C19
KLS-K224E-B16E30G12-0A1	Basic PDU	0U	346-415Vac WYE	32A	IEC 60309 3×32A	30×C13+12×C19
KLS-K224E-B16E36G12-0A1	Basic PDU	0U	346-415Vac WYE	32A	IEC 60309 3×32A	36×C13+12×C19
